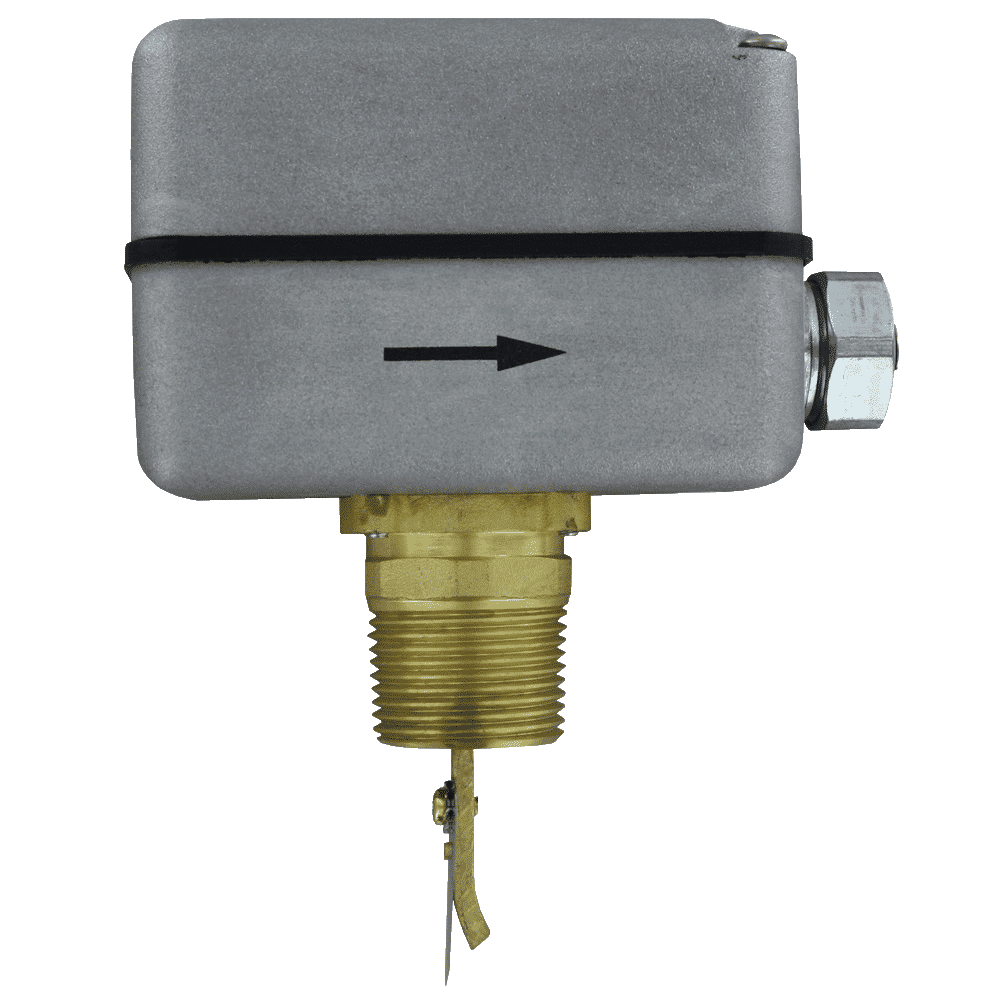

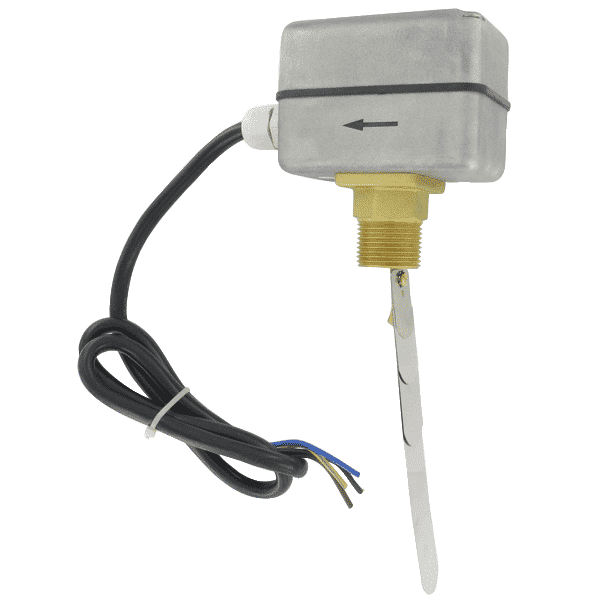

+(84) 839 606 568The SERIES FS-2 Vane Flow Switches offers an economical flow proving solution. The FS-2 paddles are adjustable to fit 1 to 8″ size pipe.
| Service: | Compatible liquids. |
| Wetted Materials: | Bellow: Tin-bronze; Vane: SS; Body: Forged brass. |
| Temperature Limits: | 230°F (110°C). |
| Pressure Limits: | 145 psig (10 bar). |
| Enclosure Rating: | NEMA 4 (IP64). |
| Switch Type: | SPDT snap switch. |
| Electrical Rating: | 10 A res, 3 A ind @ 250 VAC. |
| Electrical Connection: | Cable gland with attached wire leads or optional conduit connection. |
| Process Connection: | 1" male NPT or BSPT. |
| Mounting Orientation: | Switch must be installed vertically on horizontal pipe runs. |

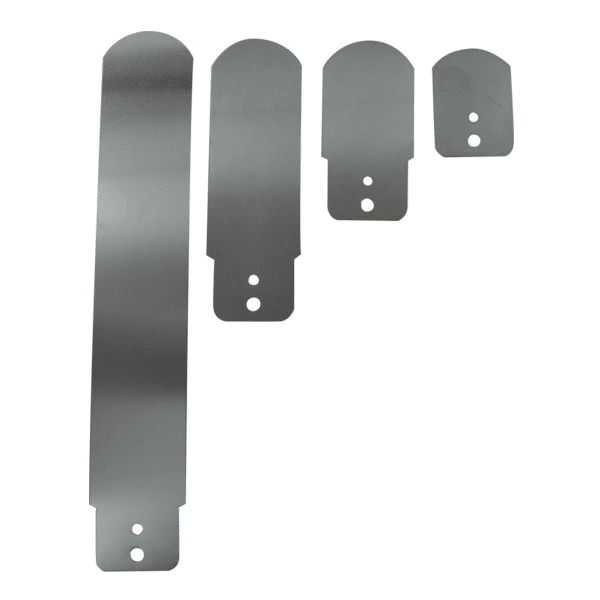

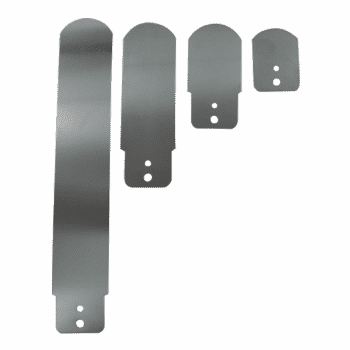

| Set Point Adjustment: | Four vane combinations and an adjustment screw. |
| Enclosure: | Die-cast aluminum alloy. |
| Weight: | 28.22 oz (0.8 kg). |
| Agency Approvals: | CE. |
Posted by Tuan
The Series UFM2 Compact Ultrasonic Flowmeters are economical, clamp-on, ultrasonic flowmeters. The UFM2 implements the transit-time difference to measure flow rates in pipes and can measure velocity and flow in pipes with outside diameters ranging from 3/4 to 7" (25 to 180 mm). This model comes with a volume pulse and 4-20 mA flow rate output Compact ultrasonic flowmeter: Series UFM2 DWYER Explore now

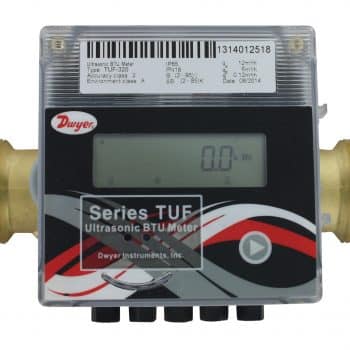

The SERIES TUF Ultrasonic Energy Meters are highly accurate and stable energy meter that utilizes ultrasonic technology to measure heating and cooling energy consumption. The Series TUF is a compact meter with a flowmeter and energy calculator in one, making it great for installation on chillers and boilers. Ultrasonic energy meter: Series TUF DWYER Explore now
The SERIES TTM Electronic Totalizing Meter measures batch and cumulative totals in liquid transfer systems in Nylon or Aluminum for water or fuels. The meter is designed for any pump, pressure, or gravity feed system with a 3 to 30 GPM (10 to 100 LPM) flow range. Electronic totalizing meter: Series TTM DWYER Explore now
Program, record, analyze, and control flow rates of various gases with Series DMF Digital Mass Flow Controller. Controllers are designed with straight tube sensors with restrictor flow elements to ensure laminar gas flow for accurate and repeatable results. Digital mass flow controller: Series DMF DWYER Explore now
The Series RM Rate-Master Polycarbonate Flowmeter are a line of general use, direct reading precision flowmeters suitable for both gas and liquid applications. This Series consists of 2" (51 mm), 5" (127 mm) and 10" (254 mm) scales that can be panel or surface mounted with optional precision metering valves. Rate-master polycarbonate flowmeters: Series RM DWYER Explore now Address: 729 Ba Thang Hai St., Dien Hong Ward, HCM City
