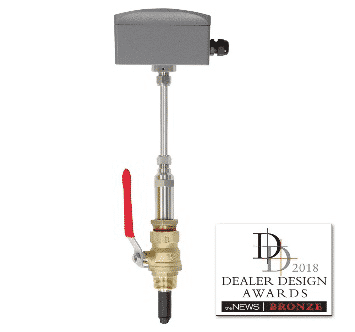

+(84) 839 606 568Adjustable insertion flowmeter featuring electromagnetic technology that accurately and reliably measures fluid velocity in addition to providing several continuous signal outputs.
| Service: | Compatible clean or dirty non coating, conductive liquids |
| Range: | 0 to 20 ft/s (0 to 6 m/s) |
| Wetted Materials: | Body shaft/fitting: 316 SS; Electrodes: 316 SS; Electrode cap: Polymer/Polystyrene; O-ring: Silicon. |
| Accuracy: | High accuracy units: ±0.5% of reading at calibrated velocity; ±1% of reading from 2 to 20 ft/s (0.6 to 6 m/s); ±0.02 ft/s (±0.006 m/s) at < 2 ft/s (0.6 m/s); Standard accuracy units: ±1% FS. |
| Temperature Limits: | Ambient: -20 to 160°F (-29 to 71°C); Process: 15 to 250°F (-9 to 121°C); Storage: -40 to 185°F (-40 to 85°C). |
| Process Connection: | 1˝ NPT or BSPT with accessory full port ball valve options. |
| Pressure Limits: | 400 psi (27.6 bar) @ 100º F (37.8°C). |
| Output: | (1) Analog: 4-20 mA, 0-5 V, 0-10 V or 2-10 V (display selectable); (1) Pulse/Frequency: 0 to 15 V peak pulse, 0 to 500 Hz or scalable pulse output (display selectable); (2) Alarm: (1) Empty pipe detection or minimum/maximum velocity, (display selectable); (1) Reverse flow output indication. |
| Power Requirements: | 12-42.4 VDC, .25 A @ 24 VDC; 12-36 VAC. |
| Agency Approvals: | BTL, CE, NSF/ANSI 61 and 372 |
|
|
|
The Series UFM2 Compact Ultrasonic Flowmeters are economical, clamp-on, ultrasonic flowmeters. The UFM2 implements the transit-time difference to measure flow rates in pipes and can measure velocity and flow in pipes with outside diameters ranging from 3/4 to 7" (25 to 180 mm). This model comes with a volume pulse and 4-20 mA flow rate output Compact ultrasonic flowmeter: Series UFM2 DWYER Explore now
The SERIES TTM Electronic Totalizing Meter measures batch and cumulative totals in liquid transfer systems in Nylon or Aluminum for water or fuels. The meter is designed for any pump, pressure, or gravity feed system with a 3 to 30 GPM (10 to 100 LPM) flow range. Electronic totalizing meter: Series TTM DWYER Explore now
The SERIES TUF Ultrasonic Energy Meters are highly accurate and stable energy meter that utilizes ultrasonic technology to measure heating and cooling energy consumption. The Series TUF is a compact meter with a flowmeter and energy calculator in one, making it great for installation on chillers and boilers. Ultrasonic energy meter: Series TUF DWYER Explore now
The Series VF Visi-Float Acrylic Flowmeters are a line of direct reading, precision machined, clear acrylic body flowmeters suitable for both gas and liquid applications. This Series consists of 2" (51 mm) and 4" (102 mm) scales with optional precision metering valves. Visi-float acrylic flowmeters: series VF DWYER Explore now Address: 729 Ba Thang Hai St., Dien Hong Ward, HCM City
