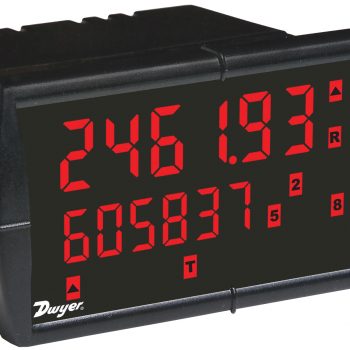

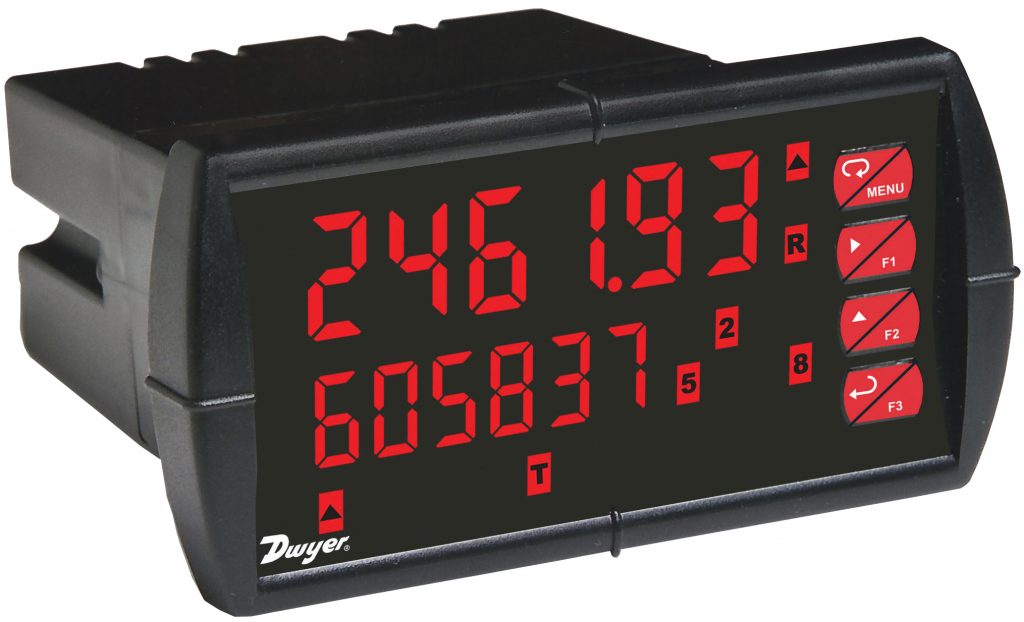

(+84) 903 999 357The Series MPM Dual Line Configurable Panel Meter is a general purposeprocess meter that is field selectable for a 4-20 mA or 0-10 V inpunt signal. It provides 24 VDC to power the transmitter.
| Input: | 0 to 20 mA, 4 to 20 mA, 0 to 5 V, 1 to 5 V or ±10 V. |
| Input Impedance: | 50 to 100 Ohm. |
| Accuracy: | ±0.03% of calibrated span ±1 count. |
| Display: | Red LED, Dual-line 6-digit display, 0.60" & 0.46". |
| Transmitter/Flowmeter Power: | 85-265 VAC models: 200 mA @ 24 VDC; 12-24 VDC models: 100 mA @ 24 VDC; Second supply with 4-20 mA output models: 40 mA @24 VDC. |
| Power Requirements: | 85 to 265 VAC 50/60 Hz, 90 to 265 VDC, 20 W max or 12 to 24 VDC ± 10%, 15 W max. |
| Temperature Limits: | Operating: -40 to 149°F (-40 to 65°C); Storage: -40 to 185°F (-40 to 85°C). |
| Front Panel: | NEMA 4X, IP65 front. |
| Output Signal: | Isolated 4 to 20 mA. |
| Switch Rating (option): | 2 or 4 SPDT (Form C) internal and/or 4 SPST (Form A) external; rated 3A @ 30 VDC and 125/250 VAC resistive load; 1/14 HP @ 125/250 VAC for inductive loads. |
| Time Delay: | 0 to 999.9 seconds, on & off relay time delays programmable and independent for each relay. |
| Shipping Weight: | 9.5 oz (269 g). |
| Agency Approvals: | CE, UL. |
| Programming Software: | Free, USB based. Resident on meter, nothing to download. |
