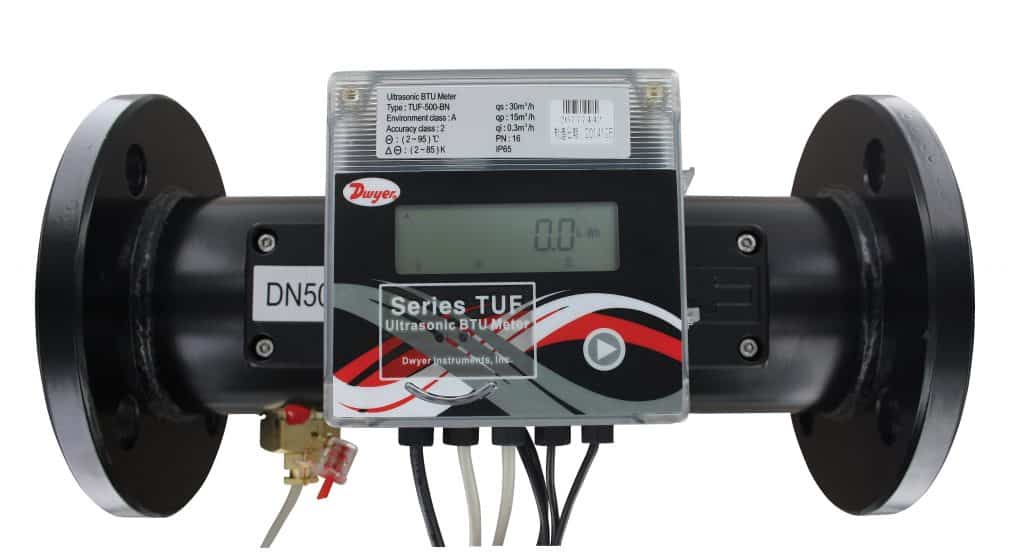

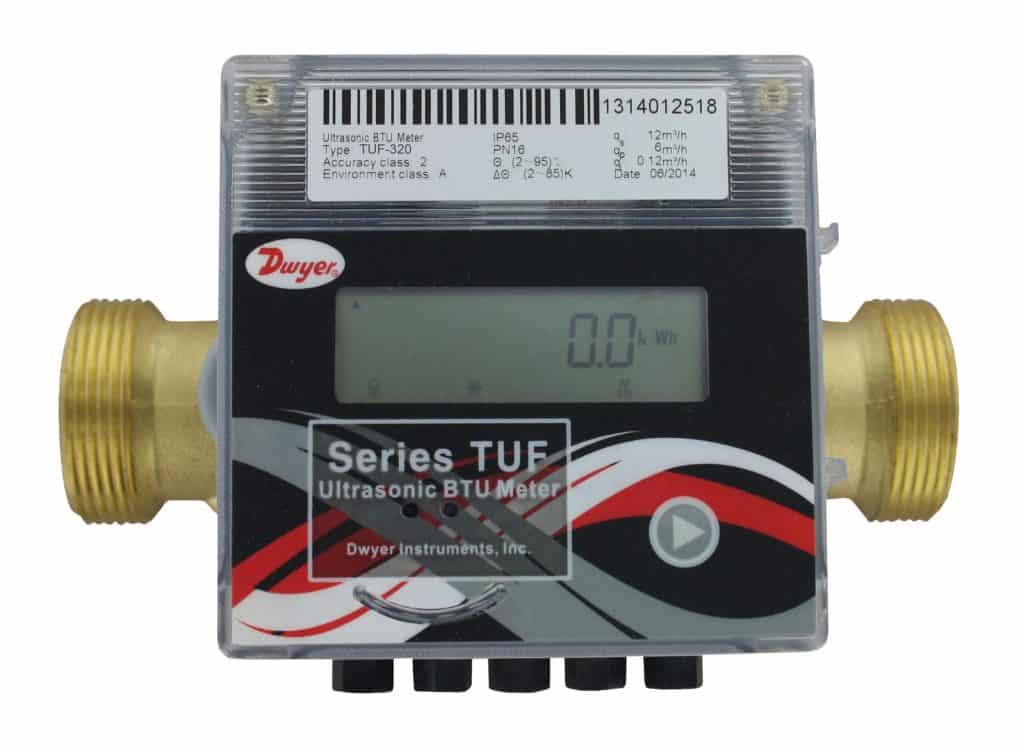

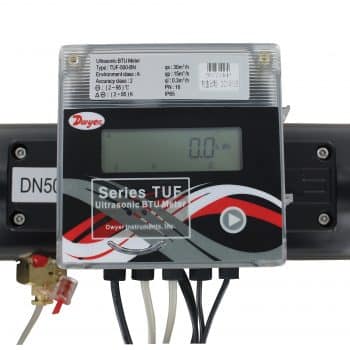

+(84) 839 606 568The SERIES TUF Ultrasonic Energy Meters are highly accurate and stable energy meter that utilizes ultrasonic technology to measure heating and cooling energy consumption. The Series TUF is a compact meter with a flowmeter and energy calculator in one, making it great for installation on chillers and boilers.
| Service: | Clean, compatible liquids. |
| Wetted Materials: | Brass and 316L SS. |
| Range: | See chart. |
| Display: | 8-digit LED. |
| Accuracy: | BTU: EN1434/CJ128 Class 2; Flow: ±(2+(0.02 Qp / Q))%; Temperature: ±0.1°C. |
| Power Requirements: | 24 VDC/VAC (model dependent) or 3.6 V ER26500 lithium metal battery, user supplied and installed, batter acts as back-up if power is lost. |
| Power Consumption: | 1 W. |
| Temperature Limits: | Ambient: 41 to 131°F (5 to 55°C); Process: 36 to 203°F (2 to 95°C). |
| Humidity Limit: | < 93%. |
| Pressure Limits: | 232 psi (16 bar) for DN15 to DN40; 362 psi (25 bar) for > DN50 |
| Pressure Drop: | < 1.5 psi (10 kPa) |
| Process Connection: | See chart |
| Serial Communications: | Modbus RTU or BACnet MSTP (selectable) |
| Enclosure Rating: | IP65 |
| Enclosure Material: | Plastic |
| Repeatability: | Flowmeter: 1% |
| Electrical Connections: | 3' (0.91 m) 4x02 mm2 cable with terminal block |
| Flow Direction: | Unidirectional. |
| Mounting Orientation: | Horizontal or vertical. |
| Weight: | See chart. |
| Agency Approvals: | CE |
