Transmitter: Series MS2 DWYER

Monitors Pressure, Air Velocity & Air Flow, BACnet/Modbus® Communications

Application

Duct Static Pressure in Commercial Buildings
Fan Proving
Filter Monitoring in Air Handler Units
Building Pressure in Pharmaceutical-Semi-Conductor Clean Rooms
Air Velocity/Flow in VAV Systems

MS2_Catalog MS2_iom

(+84) 903 999 357

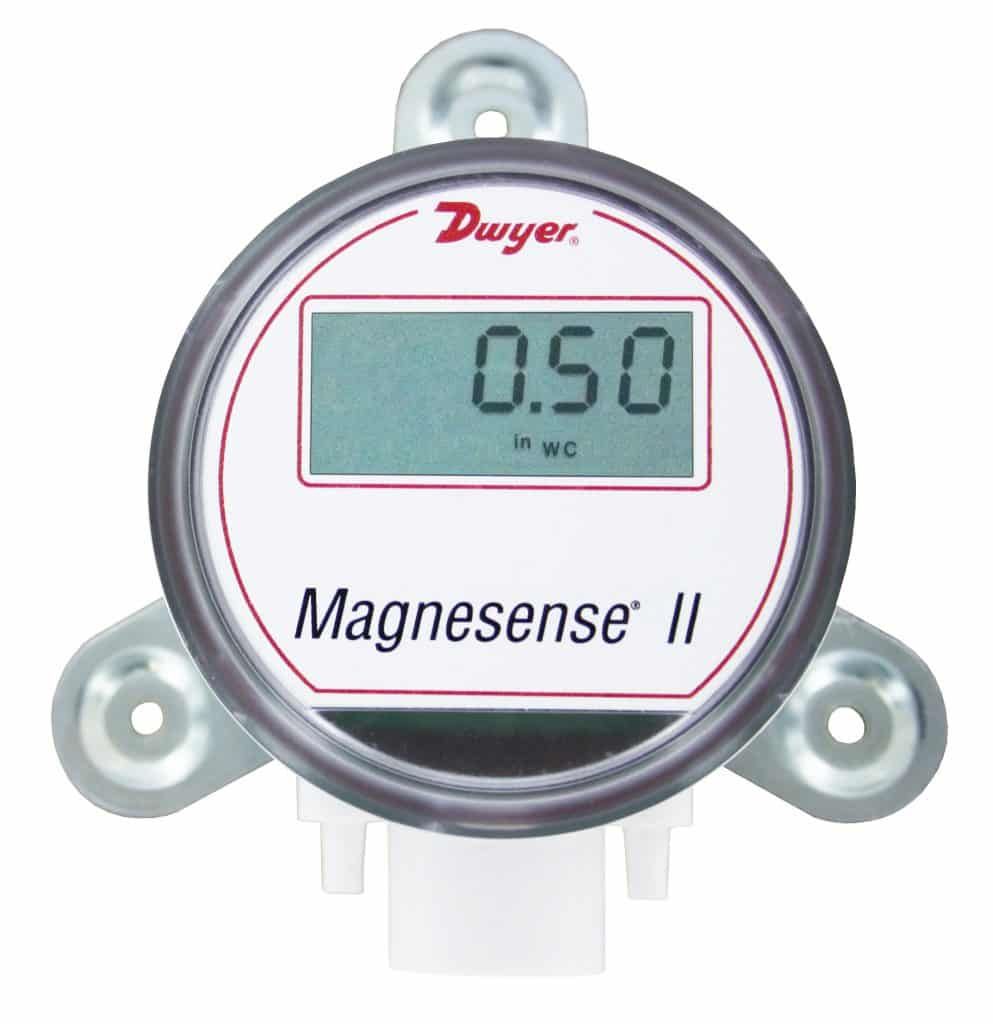

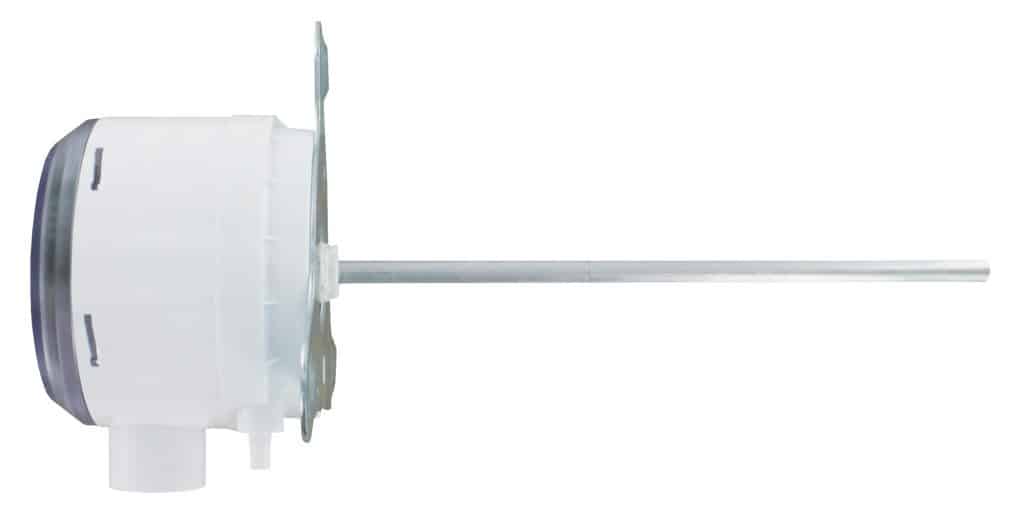

Magnesense® II Differential Pressure Transmitter, accuracy: 1 – 2 %FS, enclosure Rating: IP66.

Detail Up to top

Specification

Supported Baud Rates:	9600, 19200, 38400, 57600, 76800, 115200.
Data Size:	8.
Parity:	None.
Stop Bits:	1
Service:	Air and non-combustible, compatible gases.
Wetted Materials:	Consult factory.
Accuracy:	±1% FS for 0.15 in w.c. (40 Pa), 0.25 in w.c. (50 Pa), 0.5 in w.c. (100 Pa), 2 in w.c. (500 Pa), 3 in w.c. (750 Pa), 5 in w.c. (1250 Pa), 10 in w.c. (2 kPa), 15 in w.c. (3 kPa), 25 in w.c. (5 kPa), 28 in w.c. (6.975 kPa); ±2% FS for 0.1 in w.c. (25 Pa), 1 in w.c. (250 Pa), and all bi-directional ranges.
Stability:	±1% / year FSO.
Temperature Limits	0 to 150°F (-18 to 66°C).
Pressure Limits:	1 psi max., operation; 10 psi burst.
Power Requirement:	10 to 35 VDC (2-wire), 17 to 36 VDC or isolated 21.6 to 33 VAC (3-wire).
Output Signals:	4 to 20 mA (2-wire), 0 to 5 VDC, 0 to 10 VDC (3-wire).
Response Time:	Adjustable: 0.5 to 15 sec. time constant. Provides a 95% response time of 1.5 to 45 seconds.
Zero & Span Adjustments:	Digital push button.
Loop Resistance:	Current Output: 0 to 1250 Ω max;
Loop Resistance:	Voltage Output: Min. load resistance 1 kΩ.
Current Consumption:	40 mA max.
Display (optional):	5 digit LCD.
Electrical Connection:	3-wire removable European style terminal block for 16 to 22 AWG.
Electrical Entry:	1/2" NPS thread.
Process Connection:	3/16" ID tubing (5 mm ID); Max. OD 9 mm.
Enclosure Rating:	IP66.
Mounting Orientation:	Diaphragm in vertical position.
Weight:	8.0 oz (230 g).
Agency Approvals:	BTL, CE.

Description: The Series MS2 Magnesense® II Differential Pressure Transmitter combines the proven stable piezo technology and the versatility of our original Series MS with additional features to reduce installation time and simplify ordering. Like the original Series MS, the second generation transmitter can be used as a linear pressure output or a linear velocity output with the square root extraction done in the transmitter. Additional parameters have been included to expand the square root capability to include flow measurements.
