Transmitter: Series 626 & 628 DWYER

Complete Offering of Ranges, Connections and Outputs

Application

Compressors
Pumping Systems
Irrigation System Pressure
Industrial Process Monitoring
Hydraulic

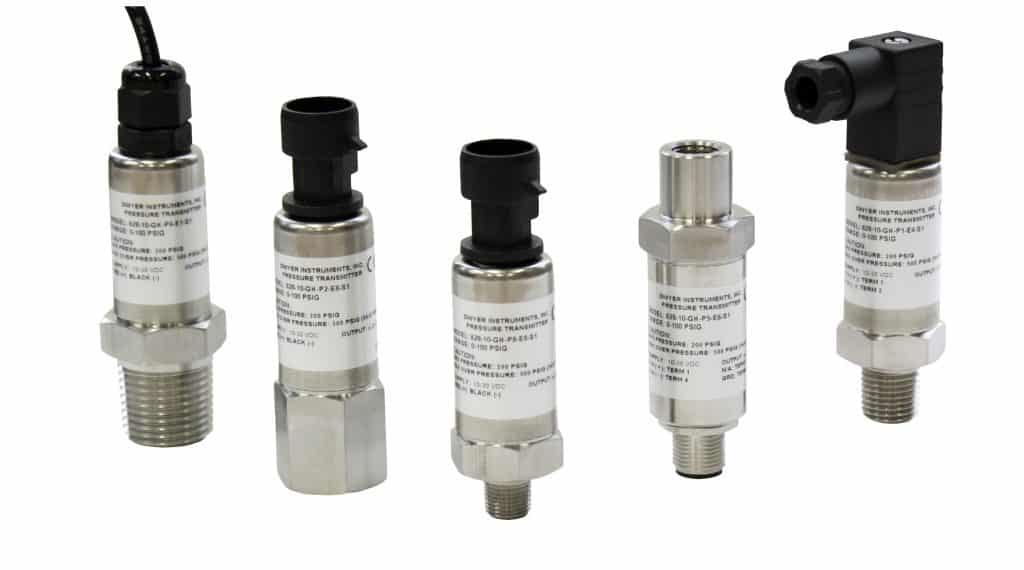

Highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X stainless steel general purpose housing or cast aluminum conduit housing. Range: 0- 40 bar, accuaracy: 0.25 – 1% FS

Detail Up to top

Specification

Service:	Compatible gases and liquids.
Wetted Materials:	Type 316L SS.
Accuracy:	>626: 0.25% FS; 0.20% RSS;
	628: 1.0% FS; 0.5% RSS;
	626 Absolute Ranges: 0.5% FS; 0.35% RSS.
	(Includes linearity, hysteresis, and repeatability).
Temperature Limits:	0 to 200°F (-18 to 93°C).
Compensated Temperature Range:	0 to 175°F (-18 to 79°C).
Thermal Effects:	±0.02% FS/°F. (includes zero and span).
Pressure Limits:	See Catalog page.
Power Requirements:	10 to 30 VDC (for 4 to 20 mA, 0 to 5, 1 to 5, 1 to 6 VDC outputs); 13 to 30 VDC (for 0 to 10, 2 to 10 VDC outputs); 5 VDC ±0.5 VDC (for 0.5 to 4.5 VDC ratio-metric output)
Output Signal:	4 to 20 mA, 0 to 5 VDC,1 to 5 VDC, 0 to 10 VDC, or 0.5 to 4.5 VDC.
Response Time:	300 ms.
Loop Resistance (4-20 mA output):	0 to 1000 Ohms max. R max = 50 (Vps-10) Ohms (4 to 20 mA output), 5K Ohms (0 to 5, 1 to 5, 1 to 6, 0 to 10, 2 to 10, 0.5 to 4.5 VDC output).
Stability:	1.0% FS/year (Typ.).
Current Consumption:	38 mA maximum (for 4 to 20 mA output); 10 mA maximum (for 0 to 5, 1 to 5, 1 to 6, 0 to 10, 2 to 10, 0.5 to 4.5 VDC output); 140 mA maximum (for all 626/628/629-CH with optional LED).
Electrical Connections:	Conduit Housing (-CH): terminal block; 1/2" female NPT conduit. General Purpose Housing (-GH): cable or DIN EN175801-803-C.
Process Connection:	1/4" male or female NPT and BSPT.
Enclosure Rating:	NEMA 4X (IP66).
Mounting Orientation:	Mount in any position.
Weight:	10 oz (283 g).
Agency Approvals:	CE, NSF, UL

Description:

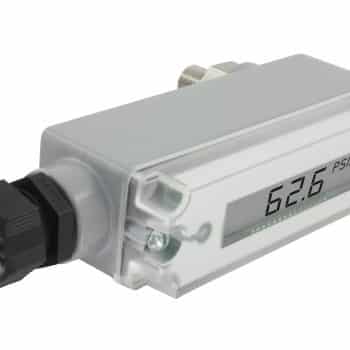

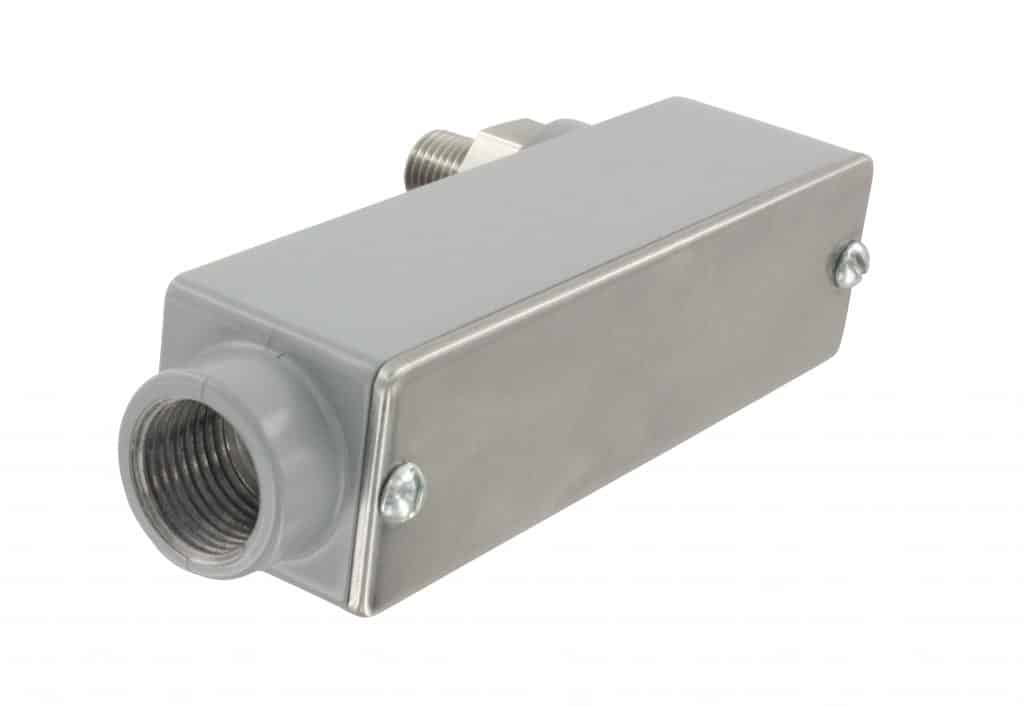

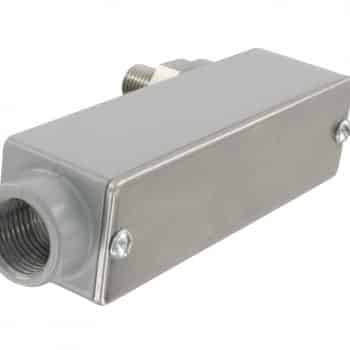

The Series 626 Industrial Pressure Transmitters possess a highly precise 0.25% full-scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.

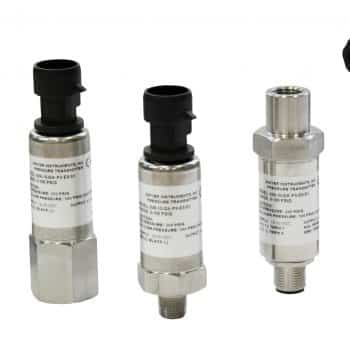

The Series 628 Industrial Pressure Transmitters are ideal for OEMs with 1% full-scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and gage pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
