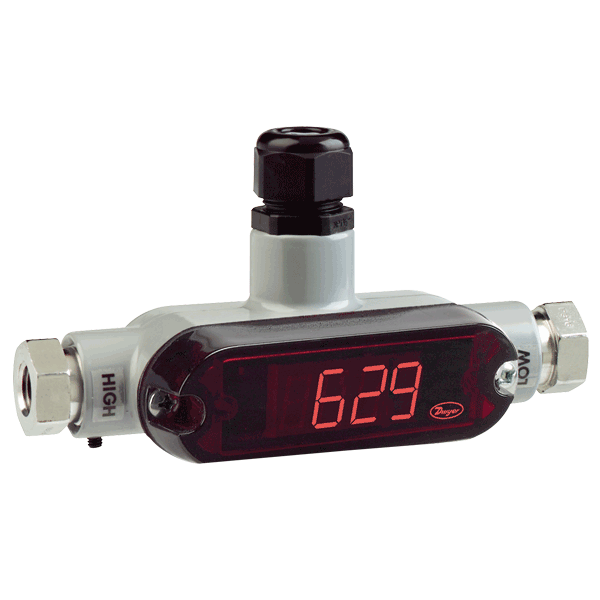

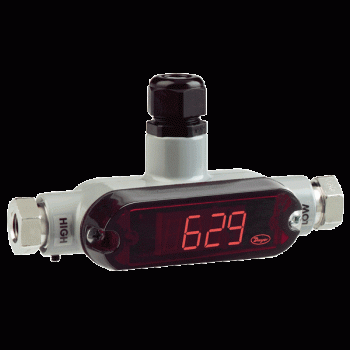

Transmitter: Series 629C DWYER

Specification

Service:	Compatible gases and liquids.
Wetted Materials:	Without valve: 316, 316L SS. Additional wetted parts with 3-way valve option: Buna-N, silicone grease, PTFE, brass 360, copper, reinforced acetal copolymer.
Accuracy:	±0.5% F.S. (includes linearity, hysteresis, and repeatability).
Temperature Limits	0 to 200°F (-18 to 93°C).
Compensated Temperature Range:	0 to 175°F (-18 to 79°C).
Pressure Limits:	See Ordering page.
Thermal Effect:	0.02%/°F (0.036%/°C) includes zero and span.
Power Requirement:	13 to 30 VDC.
Output Signals:	4 to 20 mA. Optional 0 to 5 or 0 to 10 VDC.
Response Time:	50 ms.
Loop Resistance:	0 to 1300 Ω maximum for current output. For voltage outputs, minimum load resistance: 2000 Ω.
Electrical Connection:	Terminal block; 1/2" female NPT conduit.
Process Connection:	1/4" female NPT.
Enclosure Rating:	Designed to meet NEMA 4X (IP66).
Mounting Orientation:	Mount in any position.
Weight:	10.1 oz (286 g).
Agency Approvals:	CE.

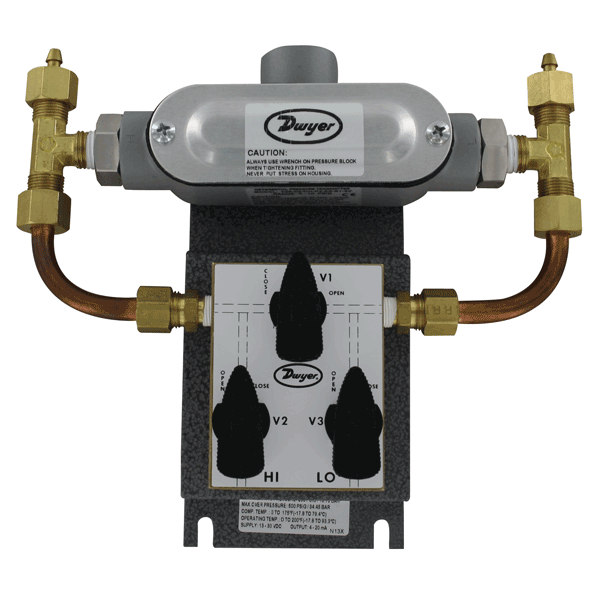

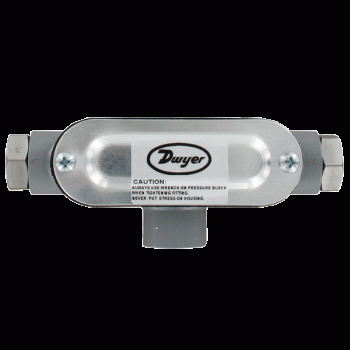

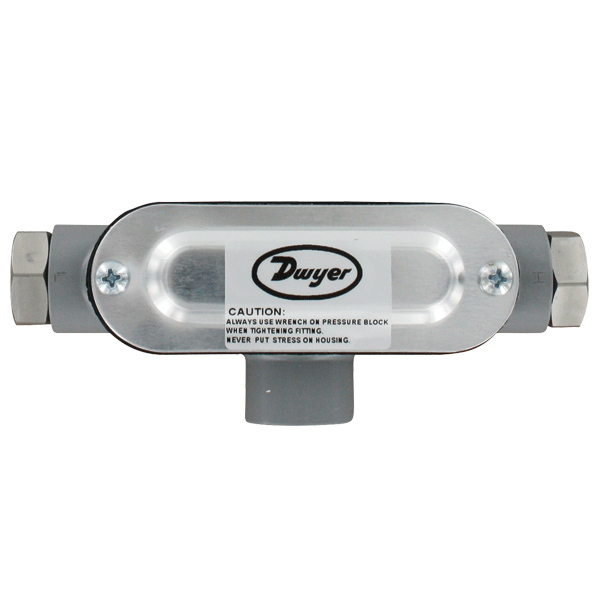

  Description: The SERIES 629C Differential Pressure Transmitter monitors differential pressure of air and compatible gases and liquids with 0.5% accuracy. The design employs dual pressure sensors converting pressure changes into a standard 4 to 20 mA output signal for two wire circuits. Small internal volume and minimum moving parts result in exceptional response and reliability. Terminal block, zero and span adjustments are easily accessed under the top cover. The Series 629 Differential Pressure Transmitter is designed to meet NEMA 4X (IP66) construction.
