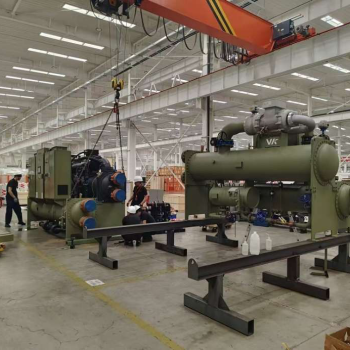

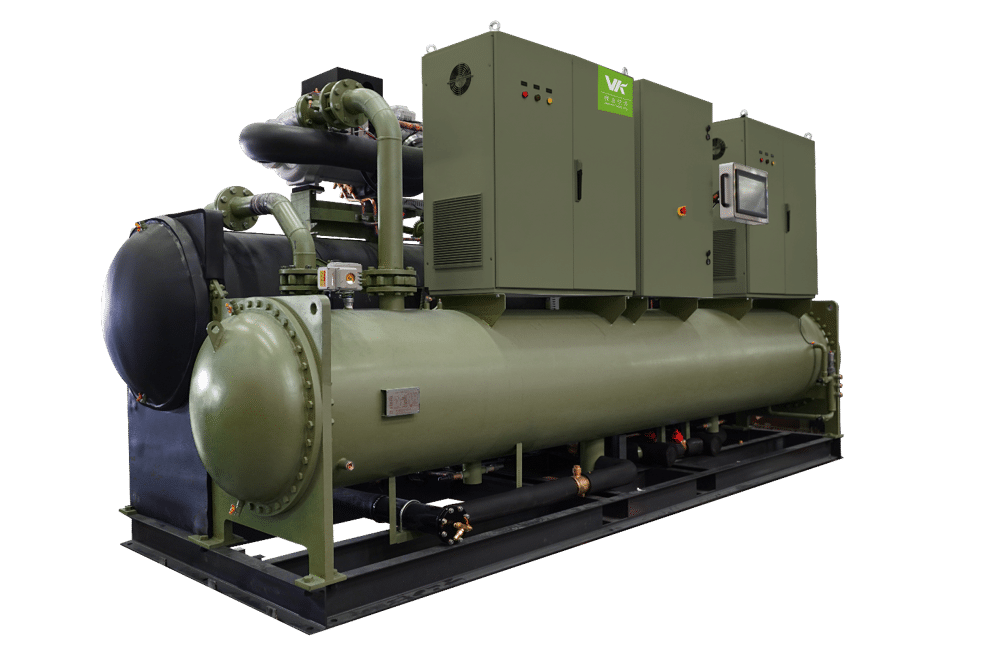

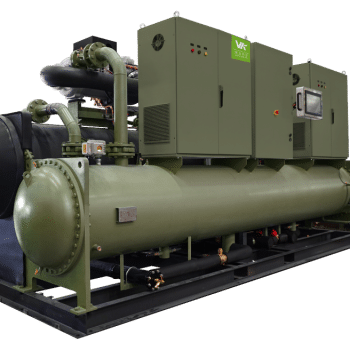

Dynamic Gas Bearing Variable Frequency Centrifugal Water-Cooled Chiller Units

Specification

The VECK VWCF Chiller Series Includes a Total of 34 Models:

• Single-Compressor Units: 65–420RT (229–1477kW), totaling 19 models

• Dual-Compressor Units: 500–850RT (1758–2989kW), totaling 8 models

• Triple-Compressor Units: 900–1250RT (3165–4396kW), totaling 7 models

Compressor

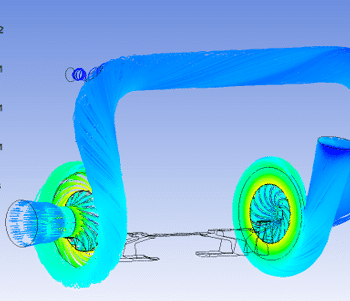

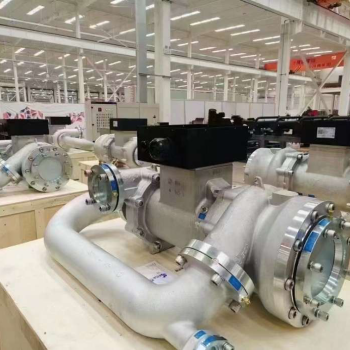

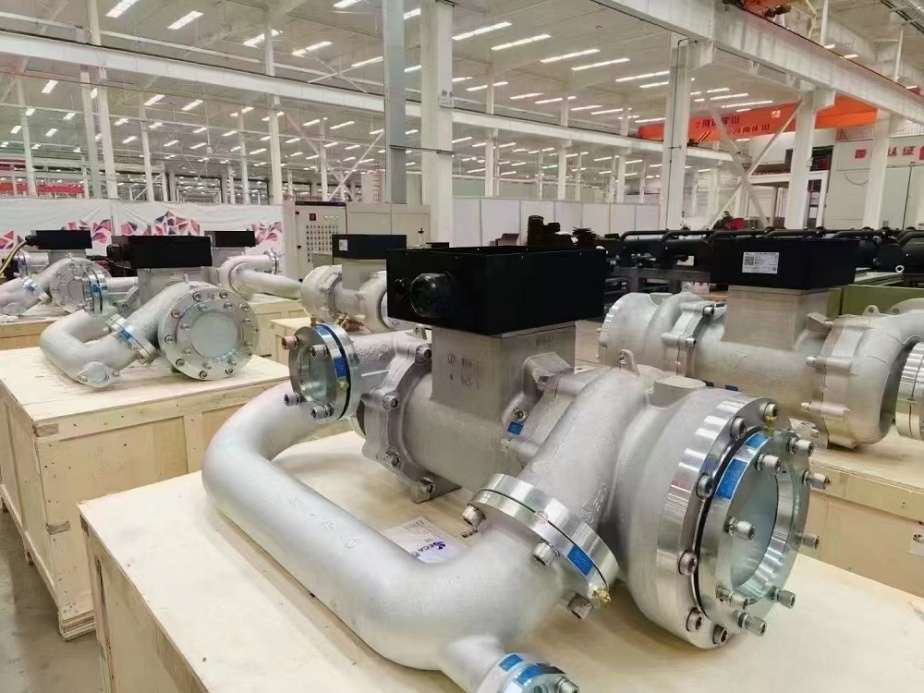

Features a two-stage compression system supported by aerodynamic gas bearings, which create a frictionless, oil-free air cushion. This enables the rotor to operate at ultra-high speeds (~30,000–50,000 rpm) without mechanical contact.
Equipped with a Permanent Magnet Synchronous Motor (PMSM) delivering superior efficiency (up to 97–98%) compared to traditional induction motors.
The Variable Frequency Drive (VFD) is refrigerant-cooled and comes integrated with a harmonic filter (THDi < 5%) to reduce electrical interference.

Evaporator

Flooded-type heat exchanger design, where refrigerant surrounds the tubes to maximize surface contact and thermal efficiency.
Features a tube-in-tube construction with internal baffle plates for optimal water flow direction.
A patented liquid distributor enhances refrigerant dispersion and improves heat exchange efficiency by 20–30% over conventional shell-and-tube designs.

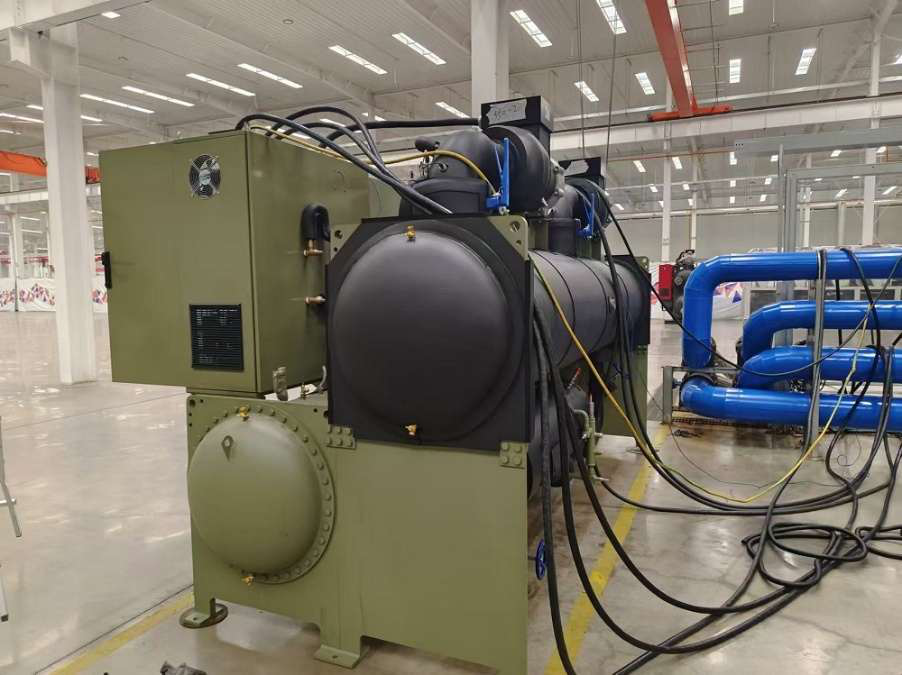

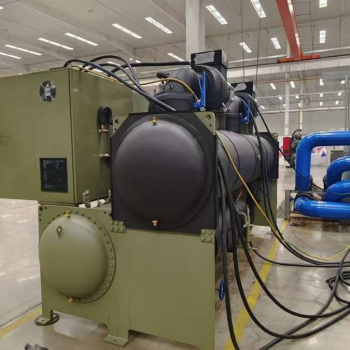

Condenser

Shell-and-tube type condenser with turbulence-inducing finned tubes to promote internal refrigerant turbulence and enhance heat transfer.
An integrated subcooling chamber increases subcooling levels (refrigerant temperature drop after condensation).
Subcooling > 5°C helps minimize flash gas formation at the expansion valve, improving system efficiency.

Electronic Expansion Valve (EEV)

Linear control valve equipped with both pressure and temperature sensors for precise refrigerant flow modulation.

Central Control Panel

Industrial-grade LCD touch screen resistant to EMI, dust, and humidity.
Supports multiple communication protocols: Modbus RTU/TCP, BACnet IP/MSTP, SNMP, OPC-UA, ensuring seamless BMS/SCADA integration.

Feature

The compressor is manufactured by XecaTurbo and comes with a 5-year warranty.

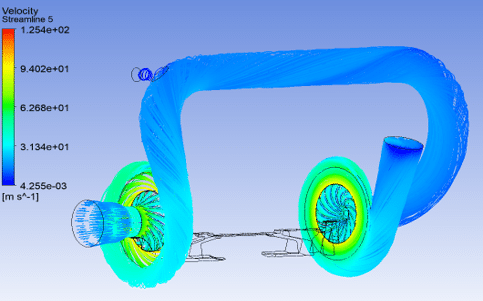

VECK compressors feature a symmetrical impeller design with axial air intake, which effectively eliminates axial thrust, reduces wear, and extends service life.

The compressor has been tested with over 255,000 start/stop cycles, while actual operational needs are estimated at only around 36,500 cycles over 10 years — demonstrating outstanding durability and long-term stability.

Startup time to reach 80% load is just 180 seconds.

Key technologies include:

• Purifying Vapour Enthalpy Technology for precise enthalpy control

• Two-Stage Subcooling Technology for enhanced cooling performance

• Efficient Flooded Evaporator for superior heat exchange efficiency

• Patented Flow-Past Shell-and-Tube Condenser with proprietary flow-optimization design

The oil-free cooling system enhances heat transfer, maintains high efficiency, and reduces energy loss by eliminating oil film resistance.

The unit has been continuously tested for over 12,000 hours without failure. It operates with noise levels ≤ 70dB and vibration ≤ 12μm — stable enough to balance a coin upright on the casing during operation.

According to an independent certification report, the chiller achieves a COP of 6.83 and an IPLV of 10.01, exceeding China's National Energy Efficiency Standard (GB 19577-2015) Level 1, which requires a minimum of COP ≥ 6.0 and IPLV ≥ 7.5.
